Toyota Celica

The Toyota Celica name has been applied to a series of coupes made by the Japanese company Toyota. The name is ultimately derived from the Latin word coelica meaning "heavenly" or "celestial".

Throughout its life span the Celica has been powered by various four-cylinder engines. The most significant change occurred in August 1985, when the car's drive layout was changed from rear wheel drive to front wheel drive. During the first three generations, American market Celicas were powered by various versions of Toyota's R series engines. The four-wheel drive turbocharged model (designated All-trac in the United States or GT-Four elsewhere) was produced from 1986 to 1999. Variable Valve Timing came in late 1997 Japanese models, and became standard in all models from 2000 on. Through seven generations, the model has gone through many revisions and design forks, including the Toyota Celica Supra (later known as the Toyota Supra). The Celica was available as notchback and liftback coupes, as well as a convertible.

First generation / A20/35 Series (1970–1977)[]

The first generation Celica was released to the Japanese market in late 1970, and targeted to be a more affordable alternative to Toyota's sportscar, the 2000GT. The cars platform was shared with the Toyota Carina yet sold at a different dealership sales channel called Toyota Corolla Store . The Carina was sold at Toyota Store locations. Displayed at the October 1970 Tokyo Motor Show[3] and marketed in December of the same year, the Celica was a personal car that emphasized styling and driving enjoyment. Japanese models were ET, LT, ST, GT, and GTV. For export markets, the Celica was offered in three different levels of trim; LT, ST and GT. The lower-end LT was equipped with the single carbureted four-cylinder 2T engine displacing 1,600 cc, while the ST came with a twin downdraft-carburetor 2T-B engine. The 2T-G that powered the high-end GT model was a DOHC 1,600 cc engine equipped with twin Mikuni-Solex Carburetors. At its introduction the Celica was only available as a pillarless hardtop notchback coupe. The SV-1 liftback was shown as a concept car at the 1971 Tokyo Motor Show. With slight modifications, this was introduced in Japan in April 1973 as the 2-litre RA25 and 1.600 L TA27 liftbacks. It was then exported to Europe in RHD form as the 1.6-litre liftback. After the October 1975 facelift, it was available in both RHD and LHD forms in other markets. The RV-1 wagon was also shown at the 1971 Tokyo Motor Show but it did not reach production. The Japanese GT models had various differences from the ET, LT and ST including the hood flutes, power windows, air conditioning, and specific GT trim, but shared a few things with the ST - a full-length centre console and oil pressure/ammeter gauges whilst the LT had warning lights for these functions. There was also the GTV version, which had the 2T-G engine, a slightly cut-down interior, and did not come standard with things like power windows, but they were optional.

The GTV has firmer suspension. The first generation Celicas can be further broken down into two distinctive models. The first of these was the original with slant nose (trapezoid-like shape front corner light). This is for Coupe model only, TA22, RA20, and RA21. These models were released from 1970 to 1975 and came equipped with the 2T, 2T-G 1.6-liter, or 18R 2.0-liter motor. They had a 95 inches (2,400 mm) wheelbase. The second series (98 in or 2,500 mm wheelbase) had a flat nose (square front corner light) and slightly longer wheelbase, and was known in Europe as the TA23. This facelift model appeared in Japan in 1974, but for export was the 1976 model year. The Japanese version had engines under 2.0 liters so as to conform to Japanese regulations concerning engine displacement size, thereby allowing buyers to avoid an additional tax for a larger engine.

The first Celica for North America, 1971 ST was powered by 1.9-liter 8R engine. The 1972-1974 models have 2.0-liter 18R-C engines. For 1975-77, the engine for the North American Celica is the 2.2-liter 20R. The Celica GT and LT models were introduced in the U.S. for the 1974 model year. The top-line GT included a 5-speed manual transmission, rocker panel GT stripes, and styled steel wheels with chrome trim rings. The LT was marketed as an economy model. Mid-1974 saw minor changes in the Celica's trim and badges. The automatic transmission became an option on North American ST and LT models starting in the 1973 model year. For 1975, the 1974 body was used, but body-color plastic fascia and sturdier chrome and black rubber bumpers, replaced the chrome bumpers used in the earlier cars (in accordance with US Federal bumper laws). Unfortunately the early 8R and 18R series engines proved to be less than durable, with early failures common. The 1974 18R-C engine's durability was improved somewhat, but the 20R introduced for 1975 proved to be a better engine in most respects.

1975 Facelift[]

The Liftback was introduced for Japanese market in April 1973, but not until 1976 for export models. Models for home market Liftback were 1600ST, 1600GT (TA27), 2000ST, and 2000GT (RA25 and RA28). The American Liftback is a GT (RA29) with a 2.2-liter 20R engine. All the Liftback models have flat noses. Although there is no "B" pillar in the Liftback, the rear windows do not roll down (as they do in the hardtop coupe). Although they looked the same, there were a few minor visible differences.

In October 1975, The entire Celica lineup was given a facelift, with a revised front bumper and grille arrangement. The new model codes for facelift hardtop coupe were RA23 for general worldwide market with 18R engine, or RA24 for the American spec with 20R engine. The Liftback were coded RA28 for worldwide or RA29 for US. Also available was the TA23, which was similar to the RA23, but with the 2T engine. The RA23 and RA28 had a more distinctive bulge in the bonnet, or hood, which was lacking in the TA22 or RA20 Coupe and in the TA27 and RA25 Liftback Celica. The TA22 Celica also had removable vents mounted in the bonnet, which the RA23 and RA28 lacked. The RA series also had an elongated nose to accommodate the larger engine. The door vents, fuel filler cap, and interior were also different between the TA and RA series.

For 1976-1977, the Liftback was released with the 18R-G Twincam engine (except US) with a Yamaha head and running gear. This engine produced significantly more power than the 18R-C. Peak power was about 100 kW (134 hp) at 6,000 rpm. In Australia, the Celica was first released in the 1.6 L 2T motor. The later 1975-1977 Celica was released with the 2.0 L 18R motor.

The Liftback was often called the "Japanese Mustang" or the "Mustang Celica" because of the styling similarities to the Ford Mustang pony car, including the triple bar tail lights that are a signature Mustang styling cue and the overall homages to the muscle-car era.

Second generation (A40, A50; 1977–1981)[]

The second generation Celica was released for 1978 model year (production began in late 1977), and was again available in both Coupe and Liftback forms. The Coupe was no longer a true hardtop; both Coupe and Liftback had frameless door glass but featured a thick "B" pillar. David Stollery was responsible for its design. From 1979 to 1981 the Griffith company in the US offered a Targa style convertible conversion to the Coupe. They were called the SunChaser and had a removable Targa top and a folding rear roof, much like the '67 Porsche 911 soft-window Targa. These were Toyota approved and sold through Toyota dealers. Over 2000 were produced.

In 1978 Toyota began production of the Mark I Toyota Supra in Japan, as the Toyota Celica XX. The year it debuted in the United States and Japan was in 1979. The U.S. Mark I (chassis code MA46) was originally equipped with a 110 hp (82 kW) 2.6 L (2563 cc) 12-valve SOHC inline-6 engine (4M-E). Simultaneously in 1979, the Japanese Mark I (chassis code MA45) was offered with a 110 hp (82 kW) 2.0 L 12-valve SOHC inline-6 engine (M-EU).

The second generation Celica can also be broken down into two series of release (known as Series A and Series B). These two Celicas were only distinguishable by appearance - both having the same engine capacity. Series A Celicas (1978–1979) were released with round headlights and chrome bumpers for lower grades. The higher grades such as GT and all US models have black rubber bumpers. The Series B Celica (1979–1981) was released with square headlights and black rubber bumpers and various other 'minor' differences.

Power for North American models was provided by a 2.2 L 20R engine for both ST and GT models. Japan and other markets had 1.6-, 1.8-, and 2.0-liter powerplants. This new generation offered more safety, power and fuel economy than previous models, and was awarded Motor Trend's "Import Car of the Year" for 1978. Japanese models were ET, LT, ST, SE, XT, GT, and GTV. The GT and GTV have an 18R-G Twincam engine. In late 1978, the GTV was replaced by GT Rally.

The limited edition "US Grand Prix" GT Liftback was offered in 1980 due to Toyota's connection to the U.S. Grand Prix West in Long Beach, California. For 1981, the North American models were given a bigger engine, the 2.4-liter 22R from the 4Runner and Pickup. To celebrate the Celica 10th Anniversary, the GTA Coupe was released. This was basically a GT Coupe with 4-speed automatic transmission, Supra style interior, power windows, upgraded sound system and alloys. The GTA is distinguishable by the black/gold two tone paint and a "GTA 10th anniversary" plaque on the centre console

There were about 70 different variants of second generation Celica sold in Japan over the model's life time. At its pinnacle, Toyota retailed 49 versions at once.

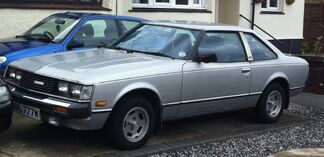

Third generation / A60 Series (1981–1985)[]

August 1981 saw the introduction of the third generation Celica. The car was available in coupe, liftback and convertible forms, with many buyers preferring the liftback. Styling was changed considerably from previous models and power was provided by a 2.4 L 22-R or 22R-E engine in all North American models, while carbureted 2.0 L I4 engine (namely a 2S-C) was also used. The 2.4 L became the biggest engine offered in any Celica ever, except for the Supra model. Other engines for Japanese models were 1.6-liter 2T, 1.8-liter 3T and 1S, and 2.0-liter 18R-G. Trim levels are SV, ST, ST-EFI, SX, GT, and GT Rally. Two body styles were offered: coupe and liftback. Rack and Pinion steering was offered with this Celica.

Fuel injection became standard on all North American Celicas started from August 1982, therefore the 22R engine became 22R-EC. In August 1982, Toyota added the GT-S model to the North American market to re-inject the sports image that Celica had lost as it grew larger and heavier with each subsequent model. The GT-S included larger 14x7" wheels and 225/60HR14 tires, fender flares, independent rear suspension, a sports interior including special seats, and a leather-wrapped steering wheel and shifter knob. Most of these came from the Supra. This made sense as the Supra was based on the Celica. From the windshield back, both cars were nearly identical when in liftback form. There were also optional rear louvers for the coupe and liftback. The upgraded GT-S wheels are coveted as replacements by many people who own first generation Celicas as they remained four-lug and looked sportier than first generation wheels while still providing the "classic Celica" look and feel. The wheels were also polished aluminium as opposed to the flat finish of the lower models

In September 1982, the first Celica turbo was launched in Japan. The GT-T had a 1.8-liter 3T-GTE engine. To meet the FISA regulation for Group B Rally Car to compete in the World Rally Championship (WRC), 200 units Celica GT-TS were built. These were the basic car for Group B Celica Twincam Turbo (TA64) which were built and rallied by Toyota Team Europe (TTE). The production car had 180 PS engine, and with 320 bhp engine, the fully works rally car was the most powerful third generation Celica.

Facelift was given to the Celica in August 1983 for 1984 model year. The Celica received new nose with fully retractable headlights, restyled grille, and airdam. The rear combination lamps were also revised. The Japanese Celica 1600 GT got new 4A-GE engine, and the 1600 GT-R also powered by the same motor was introduced. Another new model was the turbocharged 1800 GT-TR.

The GT-S Convertible, built by American Specialty Cars (ASC) in California, released 200 units in 1984, and 4,248 units for the 1985 model year[citation needed].

The Australian, European, Japanese, and general export model Celicas came with rear side vents, which are highly sought after by North American Celica enthusiasts.

In Europe, the Celica was offered as 1600ST with 2T engine, 2000XT (21R), and 2000GT (18R-G).

In Australia, Toyota decided initially to use the 21R-C in the dulled-down model Celica. As a result the car only turned out a mere 67 kW (90 hp). However, this was later replaced, firstly, by the far quicker 73 kW (98 hp) 2S-C motor and then by the injected 2.4-litre motor (22R-E) which provided 87 kW (118 PS; 117 hp). Later versions used IRS rear suspension, rather than the traditional live axle differential.

Fourth generation (T160; 1985–1989)[]

In August 1985 the Celica was changed completely. It was an all-new vehicle with front wheel drive, a rounded, flowing body and new 2.0 L four-cylinder engines. The Celica was no longer built on the Toyota A platform, and instead realigned with the Toyota T platform underpinning the Toyota Corona. The Toyota A platform was now exclusive to the Toyota Supra. The coupe bodystyle in Japan was used only for the Corona coupe, sold only at Japanese Toyota dealerships Toyopet Store without the retractable headlights. An optional feature only offered on the Corona coupe was four-wheel steering, not shared with the Celica during this generation, however, the turbocharged engine on the Celica was not installed in the Corona coupe.

Toyota introduced the "ultimate Celica", the GT-Four (ST165) onto the Japanese market in October 1986. With full-time all-wheel drive, including an electronically controlled central locking differential, and a turbocharged version of the GT-S 2.0 L engine producing 190 hp (142 kW) (3S-GTE), it immediately took its place as the flagship of the Celica range and became the official Toyota rally car for all years of production. The GT-Four, with a revised viscous coupling central locking differential, began export in 1987 (1988 US model year) and marketed in North America as the All-trac Turbo. It was rated at 190 bhp (142 kW; 193 PS) and 190 lb⋅ft (258 N⋅m). The All-trac system was also offered for a limited time on the Camry, and Corolla in North America without the turbo, as well as the normally aspirated and supercharged Previa.

The ST165 chassis design was quite acclaimed in its time. Toyota chose not to make any drastic suspension changes for the AWD GT-Four. The front suspension comprises MacPherson struts with an anti-swaybar and strut tower brace, while the rear employs struts with a trailing link and twin lateral links per side plus an anti-swaybar.

The ST165 GT-Four made its World Rally debut in the 1988 Tour de Corse and finished 6th. The first victory came in 1988 Cyprus (non-WRC), and the first WRC victory in 1989 Rally Australia.

Japan[]

For the Japanese market the fourth-generation Celica started with the 1S-iSU engine in the ST160 and 4A engine in the AT160. The 4A engine was terminated in August 1987 and the 1S-iLU engine was replaced by the 4S-Fi engine in the ST163 in May 1988. The 3S engine in various twincam forms was introduced in August 1987 in the ST162. The 3S-GTE turbo engine was also introduced at the same time in the all-wheel drive ST165 GT-Four. Two months later, a factory convertible (coded ST162C) was offered with the twincam 3S-FE engine. The vehicle with the 2.0 litre engine was regarded as the top trim level package due to the increased annual road tax so the GT was fully equipped to justify the tax liability.

Non twincam models came in ST and SX trim levels. Models with the 3S-FE economy twincam came in the ZR trim level, including the convertible. Models with the 3S-GELU sports twincam came in GT and GT-R trim levels and lastly the turbo all-wheel drive model came in the GT-Four trim level. A digital instrument panel was offered on the top level GT and GT-R. The notchback two-door coupe bodystyle was not offered as a Celica in Japan; instead this body was sold as the Toyota Corona coupe, with fixed headlights rather than the Celica's flip-up units.

Australia[]

The Australian spec Celica ST162 were the base model ST with 3S-FE engine offered as coupe and liftback, and the top of the line SX liftback with higher performance 3S-GE Twincam engine. Rear spoiler and alloy wheels came standard on the SX, which made it the same appearance as the Japanese GT-R or American GT-S.

The limited edition SX White Lightning with all white bumpers, side protectors and wheels was offered in 1989. Inside, it featured cruise control (automatic models only) and the same sports seats used in the ST165 GT-Four, but was otherwise identical to the SX.

Europe[]

The convertible (better known as cabriolet) was based on the 2.0 GT. The GT-S was badged 2.0 GT-i 16.

North America[]

Trims available were the ST coupe or the GT and GT-S that came as a coupe or liftback; with the GT trim available as a soft-top convertible starting in the 1987 model year. The GT-Four was available as a model year 1988, 2 years after the release in Japan. All trims came standard with a tachometer, oil pressure, voltmeter (replaced with a boost meter in the ST165) gauges and a rear window defogger for the interior.

ST: The ST was the most basic form of the T160 chassis. In 1986, the chassis was designated as the ST161. It had the SOHC 8-valve, 2.0 L 2S-E engine from the Camry, producing 97 hp (72 kW) at 4,400 rpm and 118 ft-lbs. of torque at 4,000 rpm. However, this only lasted a year as it was changed over to an all new DOHC engine 3S-FE for the 1987 model year producing 115 hp (86 kW) at 5,200 rpm and 124 ft-lbs. of torque at 4,400 rpm; and as a result, the chassis designation was changed to ST162. The ST was the lightest T160 chassis at 2455 lbs. with the manual transmission. A 5-speed manual was the only transmission available in 1986, with a 4-speed automatic being optional 1987 onwards, bringing the curb weight to 2522 lbs. Steel wheels were wrapped with 165/80-13 tires. The interior had manual windows and locks, bucket seats and an AM/FM receiver as standard features. Power steering and power brakes were standard, with ventilated discs in the front and drum brakes in the rear to go along with a 4x100 bolt pattern. Cable operated air-conditioning was optional.

GT: The GT shared the ST's engine as well as the chassis designation being the ST161 with a 2S-E engine in 1986 quickly changing over to the ST162 with a 3S-FE engine 1987 onwards. The curb weight was 2515 lbs for the coupe and 2546 lbs. for the liftback. A 4-speed overdrive automatic transmission (A140L) was an option, bringing the curb weight up to 2579 and 2610 lbs., respectively. The convertible weighed in at 2700 lbs. for the manual and 2760 lbs. for the automatic. For the interior, the GT came with an electronic 4 speaker AM/FM/MPX tuner, power side mirrors, tilt steering wheel, driver's lumbar support and an automatic retracting radio antenna was standard. Power locks, windows, power tilt/slide sunroof, side mirror defogger, cruise control, electronic air-conditioning, and 13"x5.5" aluminum alloy wheels were optional with 185/70-13 tires. A digital instrument panel was available as an option for the non-convertible GT trim only. The GT also includes a front strut bar across the two strut towers as an upgrade over the ST trim, but retains the front ventilated disc and rear drum brake combination from the ST.

GT-S: The GT-S (chassis code ST162) was given a de-tuned version of the DOHC 2.0 L engine (3S-GELC) featuring T-VIS and a 6800 rpm redline producing 135 hp (101 kW) at 6,000 rpm and 125 ft-lbs of torque at 4,800 rpm. An EGR and O2 sensor restricted the engine along with a milder ECU. The GT-S replaced the rear drum brakes with disc brakes going along with a 5x100 bolt pattern. Standard features in addition to the GT trim included an 8-way adjustable sports bucket seats with power lumbar and side bolsters, automatic climate control, side mirror defogger, wrap-around spoiler, telescopic steering wheel, and speed-rated 205/60-14 tires on 14"x6" alloy wheels. Leather interior including shift knob, door panel inserts, and steering wheel were optional. In Canada, all GT-S models were 5-speed (S53) manual transmissions, but in America, an electronic controlled 4-speed automatic (A140E) with lock-up torque converter was available. New features in 1988–1989 included an illuminated vanity light as standard and ABS as optional.

Turbo All-Trac: The turbo All-Trac (chassis code ST165), or turbo 4wd as it was named in Canada, is the American version of the GT-Four. It was given a DOHC turbo-charged, water-to-air intercooled 2.0L engine (3S-GTE) featuring T-VIS producing 190 hp (142 kW) at 6,000 rpm and 190 ft-lbs of torque at 3,200 rpm. The All-Trac only came with a 5-speed all wheel drive transmission with a viscous-coupling center differential, bringing the curb weight to 3197 lbs. The ST165 was not sold in North America before 1988 except for seventy-seven special-edition cars sold in 1987 as 1988 models at each of the 77 Toyota dealerships in California to commemorate Toyota's IMSA GTO championship win. These Celicas are all white with white wheels and blue interior and have "IMSA GTO CHAMPION" printed in small letters on the side moulding, as well as a white stripe on the grill. This top of the line trim came with the same options as the GT-S with the exception of the power interior options, leather steering wheel, fog lights, V-rated tires, and a factory full body kit as standard. One interior feature that is missing from the GT-S trim and other trims is the cup holder as the center console is different due to a larger center body tunnel to accommodate for the ST165's center drive shaft.

Fifth generation (T180; 1989–1993)[]

The fifth generation Celica was introduced in September 1989 for the 1990 model year. The Celica received new Super Round organic styling, upgraded wheels and tires, more powerful GT-Four (All-Trac Turbo in the US) with better cooling system, and for the Japanese market only, the four-wheel steering (4WS) models. Toyota engineers claimed that the round styling and lack of straight edges increased strength without adding weight. The styling was later copied by other manufacturers. Japanese market models were now S-R, Z-R, GT-R, Active Sports (first Toyota with Toyota Active Control Suspension), and GT-Four. The S-R and Z-R were powered by a 3S-FE engine, while the GT-R and Active Sports came with a 3S-GE. The 3S-GTE in the GT-Four features an air-to-air intercooler and CT26 twin entry turbo to eliminate exhaust gas interference. The Japanese market GT-Four has 165 kW (221 hp) and 304 N⋅m (224 lb⋅ft) of torque, a result of more aggressive ignition advance and ceramic turbine. The Full-time 4WD system in the GT-Four has viscous coupling limited slip center differential and Torsen rear differential.

The North American Celica had fixed door mirrors and amber front corner lights. All other destination models had folding mirrors and front clear corner lights. Driver's side SRS Airbag is standard on all US models. The base model ST has 1.6-liter 4A-FE, the GT and GT-S were powered by the 2.2-liter 5S-FE. The 1.6-liter was similar to the one used in the Corolla. The GT-S was rated 5 hp (4 kW) more than the GT at 135 bhp (101 kW; 137 PS). The 2.2-liter was designed for more low-end torque, which appealed to US buyers' preferences as opposed to the high revving engines of the past. This engine was similar to the Camry's engine except for the balance shafts. The All-Trac Turbo was available with the improved 2.0-liter 3S-GTE engine. It was rated at 200 bhp (149 kW; 203 PS) and 200 lb⋅ft (271 N⋅m) torque. The GT-S and all export market GT-Four/All-Trac Turbo are wide-body liftbacks with flared fenders. The Japanese market GT-Four was also offered as narrow-body for the pre-facelift model.

Trim levels for the European Celica were 1.6 ST-i, 2.0 GT-i 16, and GT-Four. The 2.0 GT-i 16 cabriolet was offered only in certain European countries. Only the 2.0 GT-i 16 liftback and GT-Four were officially sold in the UK. New for 1992, the wide body liftback 2.0 GT-i 16 was offered in the Netherlands and Belgium. This was basically a GT-S with 3S-GE engine.

Model grades for Australian Celica were SX coupe, SX liftback, GT-Four, and also 150 units limited edition GT-Four Group A Rallye. The Australian cars are less luxurious than Japanese market and North American market models. Initially, the GT-Four did not come with ABS and fog lamps, which became standard few months after the introduction. In 1993, the Limited Edition WRC Trophy model was offered in Australia. This is basically the SX with sport front seats from the GT-Four, cruise control, rear window shade / spoiler, and special decals.

In August 1990, the wide body liftback GT-Four A and Convertible, in base and Type G trim levels, were added into the Japanese Celica lineup. Super Live Sound System with 10 speakers became standard on the GT-Four A and optional in other models except the S-R. To celebrate 20 years of Celica production, the 20th Anniversary GT-R was released for the Japanese market in December 1990. This limited edition GT-R has the GT-Four front bumper.

The Celica convertible was built by American Sunroof Corporation (ASC) in California. It was offered as GT in US with 5S-FE engine, and as base model and upmarket Type G in Japan or 2.0 GT-i 16 cabriolet in Europe with 3S-GE engine. The Japanese market convertible also has 4WS. The European Celica cabriolet retained the old style front bumper for 1992, and received the facelift in 1993.

There are three different gearboxes for ST185 GT-Four. The E150F gearbox with 4.285 final gear ratio was installed in the regular Japanese version and All-Trac Turbo. European and Australian models, as well as the RC/Carlos Sainz/Group A models, came with the E151F gearbox with 3.933 ratio. The Japanese market only GT-Four Rally, a limited edition lightweight rally version sold only in Japan (not to be confused with the Australian GT-Four Grp A Rallye model), has the E152F gearbox with close ratio on the 1st through 4th gear and 4.285 final ratio. It also came with steel wheels and without air conditioning, power windows, or a power antenna. The early model GT-Four Rally is based on the narrow body, and the facelift model is wide body with round fog lights. Also sold in Japan only was the GT-Four V. This was an economy version of narrow body without alloy wheels, leather, or System 10, but still came with fog lights, power windows, and optional sunroof.

Anti-lock brakes (ABS) were available on the GT-S all four years and was available on the GT for 1992 and 1993 models. ABS, Leather interior, power sunroof, and System 10 premium sound system are optional on the GT-S and the 1990–1992 All-Trac Turbo, and standard on the 1993 All-Trac Turbo. With its sport-style interior, power-operated driver's seat, auto tilt-away steering wheel, and cruise control as standard equipment, the All-Trac Turbo (known as the GT-Four outside of the US) was the most expensive Celica yet. With a 2.0-liter turbocharged 3S-GTE producing 149 kW (200 hp), it was the most powerful Celica ever sold in the US.

Sixth generation (T200; 1993–1999)[]

Cressing Temple 2018 (15)

6th Generation Toyota Celica

For the US market, the Celica was only available in ST and GT trims for the 1994 model year, but the addition of the optional "Sports Package" to the GT Liftback produced GT-S-like handling. All models came with standard dual SRS Airbags. The ST had a new 1.8-liter 7A-FE engine which could also be found in the Corolla, while the GT was powered by the carried-over 2.2-liter 5S-FE engine which featured dual overhead camshafts and fuel injection, could also be found in the Camry. The turbocharged All-Trac was no longer offered in the US. The 7A-FE is rated at 110 hp (82 kW) and 110 lb⋅ft (149 N⋅m), while the 5S-FE is rated at 135 hp (101 kW) and 145 lb⋅ft (197 N⋅m). In Canada, the Celica GT liftback with "Sports Package" are badged GT-S.In October 1993, Toyota launched the sixth-generation Celica for the 1994 model year. The styling of the new Celicas was acclaimed by most publications as "Supra-esque" with four round headlights and also had a visual resemblance to the Soarer introduced in 1991. Celicas were available in either notchback coupe or liftback form, the convertible would come later. New safety equipment in the form of driver (and then later passenger) airbags were standard in most markets, and anti-lock brakes were available on all models. Many Celicas also sported CFC-free air conditioning.

Initially the Japanese market models were SS-I and SS-II. The ST205 GT-Four was launched in February 1994 and the Convertible in the Autumn of the same year. The width of this generation was no longer in compliance with Japanese Government regulations concerning exterior dimensions, which added an additional tax liability on Japanese buyers. This generation also saw a badge engineered version without the headlight treatment, called the Toyota Curren, and was sold only in Japan at Toyota Vista Store locations, allowing the Celica to be sold at different retail sales channels. The Celica was exclusive to Toyota Corolla Store locations.

Production of the GT-Four (or previously known as All-Trac in the US), continued for the Japanese, Australian, European, and British markets. This ST205 version was to be the most powerful Celica produced to date, producing 178 kW (239 hp) (export version) or 187 kW (251 hp) (Japanese market) from an updated 3S-GTE engine. Influenced strongly by Toyota Team Europe, Toyota's factory team in the World Rally Championship, the final version of the GT-Four included improvements such as an all-aluminum hood to save weight, four-channel ABS (with G-force sensor), an improved turbocharger (incorrectly known by enthusiasts as the CT20B), and Super Strut Suspension. The 2500 homologation cars built to allow Toyota to enter the GT-Four as a Group A car in the World Rally Championship also sported extras such as all of the plumbing required to activate an anti-lag system, a water spray bar for the Intercooler's front heat exchanger, a water injection system for detonation protection, a hood spoiler mounted in front of the windscreen to stop hood flex at high speed and the standard rear spoiler mounted on riser blocks. The car proved to be quite competitive in the 1995 World Championship. However, the team was banned from competition for a year after the car's single victory due to turbocharger fixing – a device that meant there was no air path restriction on the intake – when the jubilee clip (worm-drive hose clamp) was undone this would flick back into place so as to go un-noticed by inspectors. Toyota has always claimed that they knew nothing of the fix – but opponents say it was one very cleverly engineered device. In some respects this car is a true sports car; in order to qualify for rallying it has a lot of special features and a unique strut arrangement.

In Australia, the 5S-FE powered Celica ST204 was offered in SX and ZR trim levels. The ZR has standard SRS Airbag, fog lights, alloys, and other features. The limited edition SX-R was offered in 1998–1999. Based on the SX, this model came with black/red interior, white-faced speedometer and tachometer, fog lights and alloy wheels.

The ST205 Celica GT-Four was available in Australia only in 1994. There was a limited delivery of only 77 units, and each vehicle came with an individually numbered plaque in the cabin and Group A Rallye badges on the hatch. All Australian models were taken from the 2,500 units homologation run and had black leather interior and a full size spare wheel. The only option being a moonroof (17 of the 77 were available with this feature).

The fourth-generation convertible was introduced in 1994. Built off of the GT coupe, the conversion took place in the ASC facility in Rancho Dominguez, California. The vehicle arrived in the US as a partially assembled vehicle. At ASC, the roof was removed and a three-layer insulated and power-operated top was installed, producing a vehicle that was virtually water and windproof.

Like its coupe and liftback siblings, the American GT convertible is ST204 with 5S-FE engine, while the Japanese Convertible and European GT cabriolet are the 3S-GE powered ST202. The Japanese market soft top Celica was offered as the base model Convertible Type X with either manual or automatic transmission, and the fully equipped automatic only Convertible.

In August 1995, minor changes were given to all Japanese market Celica Liftback models, and the SS-III was added into the line up. All models received new rear combination lamps, and if fitted, the new style rear spoiler. The front drive models received new a front bumper design. The SS-III came with standard Super Strut Suspension and side aerodynamic rocker panels. The GT-Four also got side rocker panels, restyled rear spoiler, and new alloys. In January 1996, facelift was given to the Japanese market Celica convertible.

The 1996 Celica for export market received the same front restyling as the Japanese models, although the tail lights were untouched. The new front bumper has two smaller sections on each side of a smaller air dam as opposed to a single large air dam in previous models. Also new were optional side skirts to improve its aerodynamic efficiency, as well as a redesigned rear spoiler. The North American GT and Australian ZR models came with standard fog lights, and the ST and SX models without the optional fog lights had black grills fill in their place.

To celebrate 25 years of Celica, the SS-I and SS-III Special Edition were released in Japan, and the 25th Anniversary ST Limited and GT convertible marked this occasion in the US. These Special Edition models have special emblems on the front fenders, and the inside on the rear view mirror hanger, and the name Celica was printed on the front seats as well.

For 1997, the only change in the North American Celica was the discontinuation of the GT coupe. Another minor change was given to Japanese market Celicas in December 1997. Projector headlights were optional for all models. The 3S-GE engine on the SS-II and SS-III received VVT-i, the SS-III was given a BEAMS tuned 3S-GE engine. WRC style high rear spoiler returned on the GT-Four and also standard on the SS-III.

In 1998, the underpowered ST model was discontinued in the US, leaving only GT models. In addition, the GT notchback coupe returned after a year's absence. In the UK, Toyota released the SR based on the 1.8 ST. The SR has full body kit, mesh grille, 16-inch alloys, and upgraded sound system. The US Celica line up was simplified even further in 1999 by eliminating all coupes, leaving only the GT liftback and GT convertible. The GT-Four was still offered in Japan. Also in early 1999, Toyota released pictures of their XYR concept car, which would soon become the next Celica.

Gallery[]
